HY-LZL-B-2240

CLEAR FLOOR LIFT

CHARACTERISTICS

1.Clear floor design, save space.
2.Adopt double cylinder, 4x4 higher and stronger chain, the wire rope balance system.
3.Electric release.
4.Rubber pad door-opening protection.
5.Secure fence protect the toes.
6.Rubber support pad adopts double helix adjustment height and height increase joint.
7.Limit switch.
8.The arm adopts two stages or three stages design, larger range adjustment, suitable for  different vehicle chassis, three-node arm optional installation.

TECHNICAL SPECIFICATIONS

  • 4000kgLifting Capacity
  • 1850mmLifting Height
  • 120mmMin. Height
  • 2500mmPass Width
  • 2790mmColumn Width
  • 3320mmTotal Width
  • 50s-60sLifting Time
  • 2.2kw-380v or 2.2kw-220vMotor Power
  • 24MPaOil Pressure Rating
  • 650kgWeight

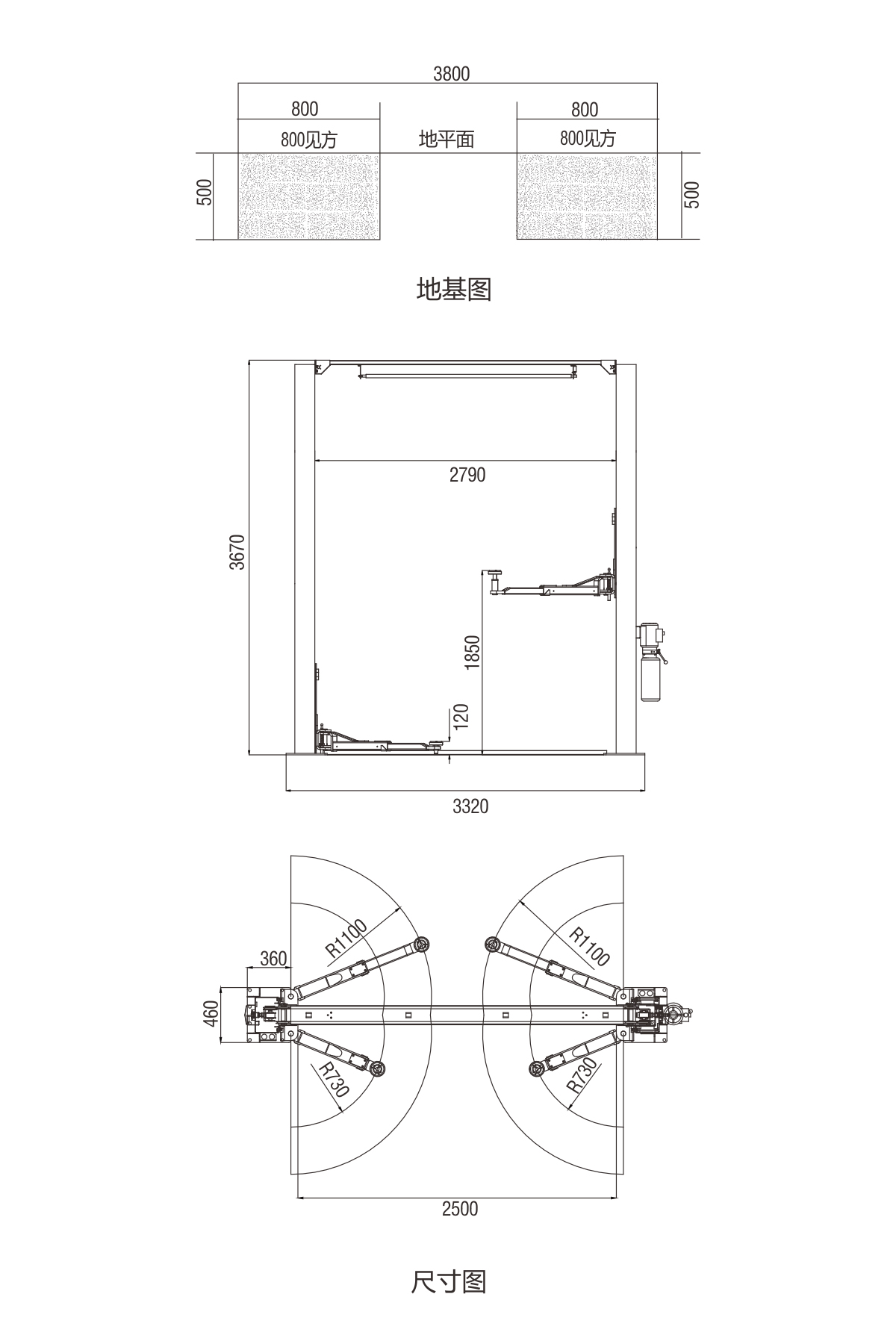

  DIMENSIONS (mm)
