HY-PBS-C-6340

HYDRAULIC FOUR POST LIFT

CHARACTERISTICS

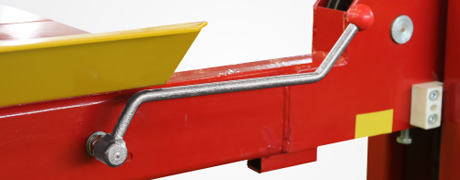

1.Adopt the electric release,  manual and pneumatic release.
2.Hydraulic power unit configuration throttling device, they can always adjust the rate of decline.
3.Hydraulic cylinder drive, rope drive, quiet and smooth lifting.

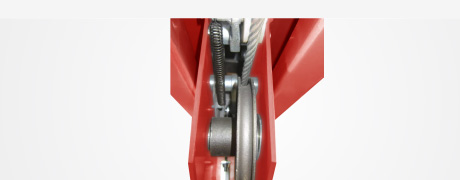

4.With wire control security lock, with a wire rope fracture protection, operation safety.
5.Adopt electrical release, eight -point locking system, easy to operate.
6.Can be locked in the desired height of operation, safety and reliability.
7.Runway spacing is adjustable for different wheel base vehicle.

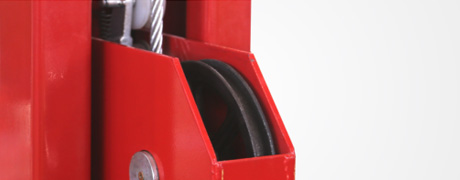

8.With the second lift pulley, can adopt the manual release,  pneumatic release and hydraulic.

TECHNICAL SPECIFICATIONS

  • 3500kg/4000kg/5000kgLifting Capacity

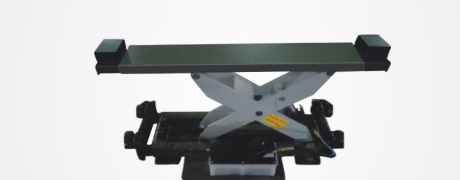

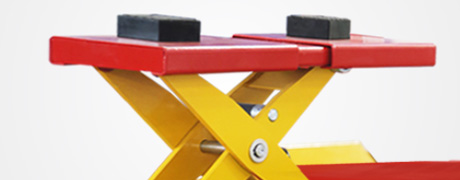

  • (Main) 1500mm (Jack) 350mmLifting Height
  • 200mmMin. Height
  • 50s-60sLifting Time
  • 4200mm/4500mm/5000mmLength Of The Platform
  • 550mmPlatform Width
  • 2.2kw-380v or 2.2kw-220vMotor Power
  • 24MPaOil Pressure Rating
  • 0.6-0.8MPaAir Pressure
  • 1200kg/1250kg/1350kgWeight

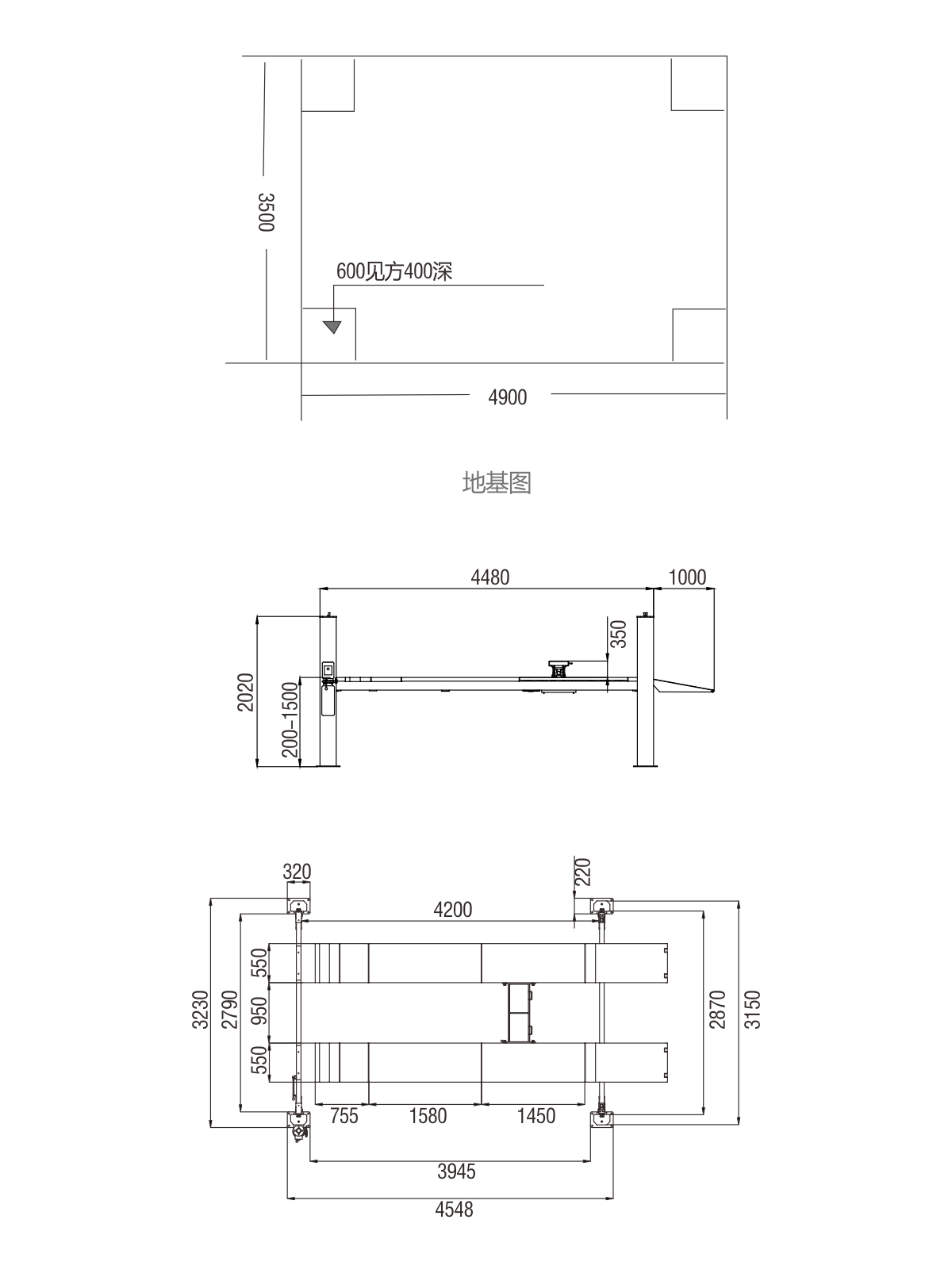

  DIMENSIONS (mm)
